Overview
The Air-Conditioned eXecutive Coach (AXC) is a newly introduced coach by KTM Charter Train designed to offer a higher level of comfort above the traditional First Class.
The interior features a 1+1 seating layout with wide, cocoon-style seats that provide a luxury and private travel experience, with all seats capable of reclining into a lie-flat position.
In addition, the AXC also includes dedicated onboard facilities such as a private toilet, a surau, and luggage storage areas, redefining seamless long-distance journey from start to end.
History
AXC is a refurbished coach converted from the former ASC coach by Padu Sedia in 2025. The upgrade focused on renewing the interior, including the replacement of wall panels, flooring, and toilet fittings to provide a modern and comfortable environment.
While the interior has been redesigned, the exterior structure remains largely unchanged from the ASC, with the addition of a maroon and orange livery applied over the stainless steel body to reflect its updated identity.
Lines
AXC is currently owned by KTM Charter Train and will be used on chartered trains only.
Designs

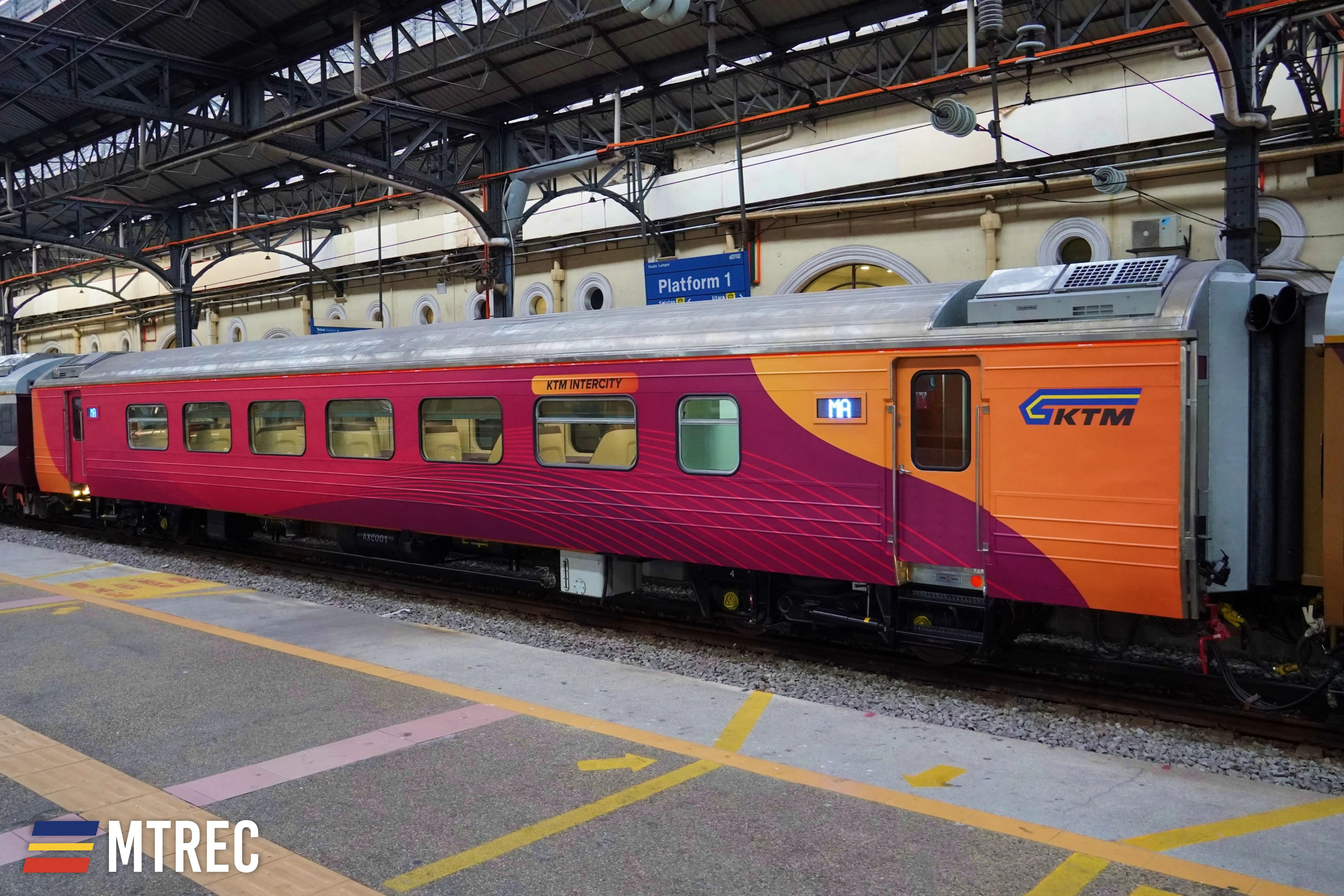

Exterior
The AXC carries a unique livery featuring a combination of vibrant orange and gradient magenta tones.
A sweeping wave design divides the coach body with a large gradient magenta section rising from the lower side and curving upward, while at both ends of the coach is finished in orange.
Within the magenta section, thin horizontal lines are applied to create a sense of movement along the coach.
The KTM logo is displayed on the orange section, with a “KTM INTERCITY” label positioned above the window.

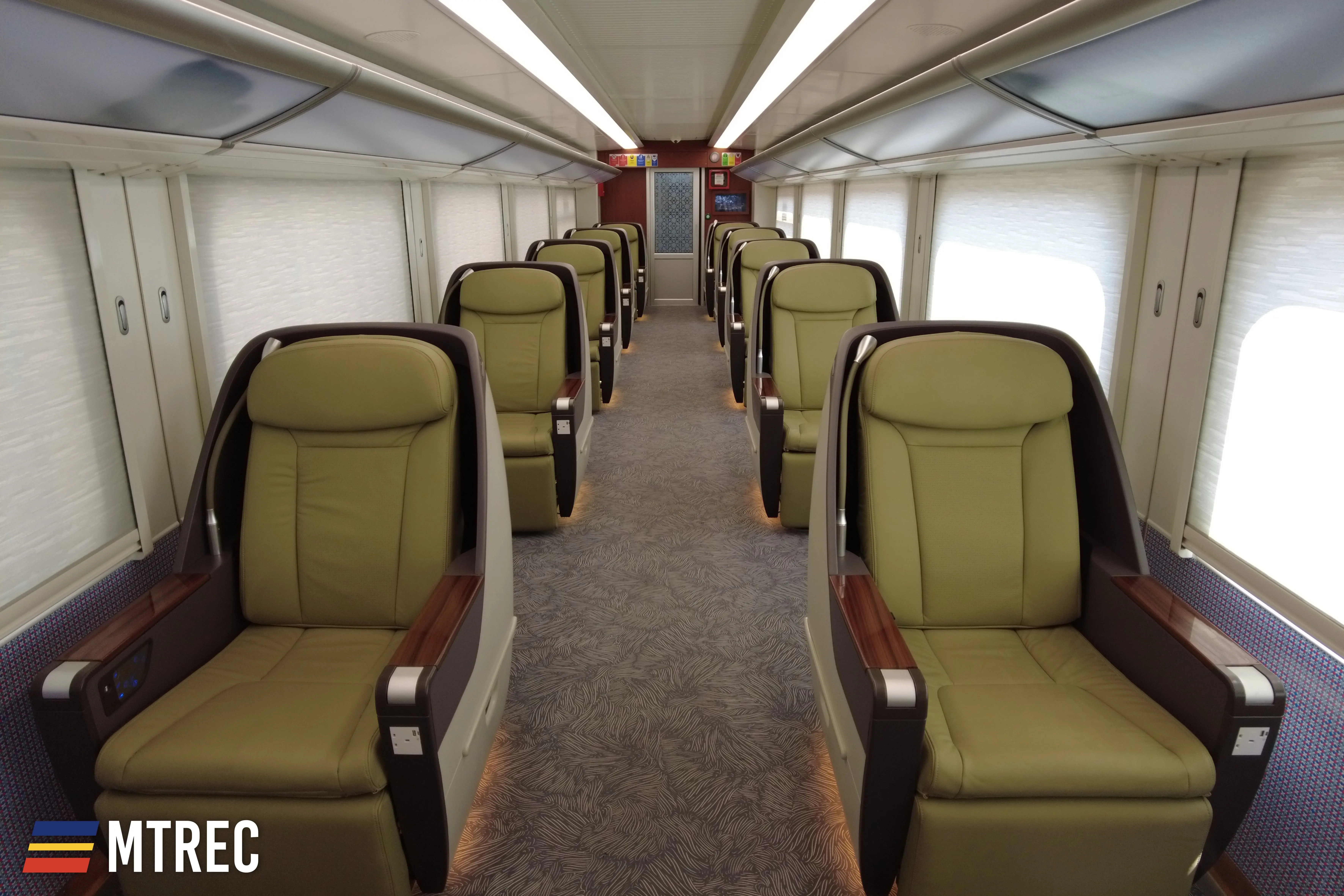

Interior
The interior of the AXC comes with a fully carpeted floor with subtle patterned texture in neutral tones and illuminated by under seat ambient lights. There are a total of 14 individual capsule seats in this coach.
The wall panels are finished in a light colour with smooth surfaces, complemented by wood-toned accents around the doors and seat frames that add warmth to the overall space.
The ceiling features a simple, continuous panel design with recessed lighting that runs along both sides creating an even and soft illumination throughout the cabin.
Features
Seats

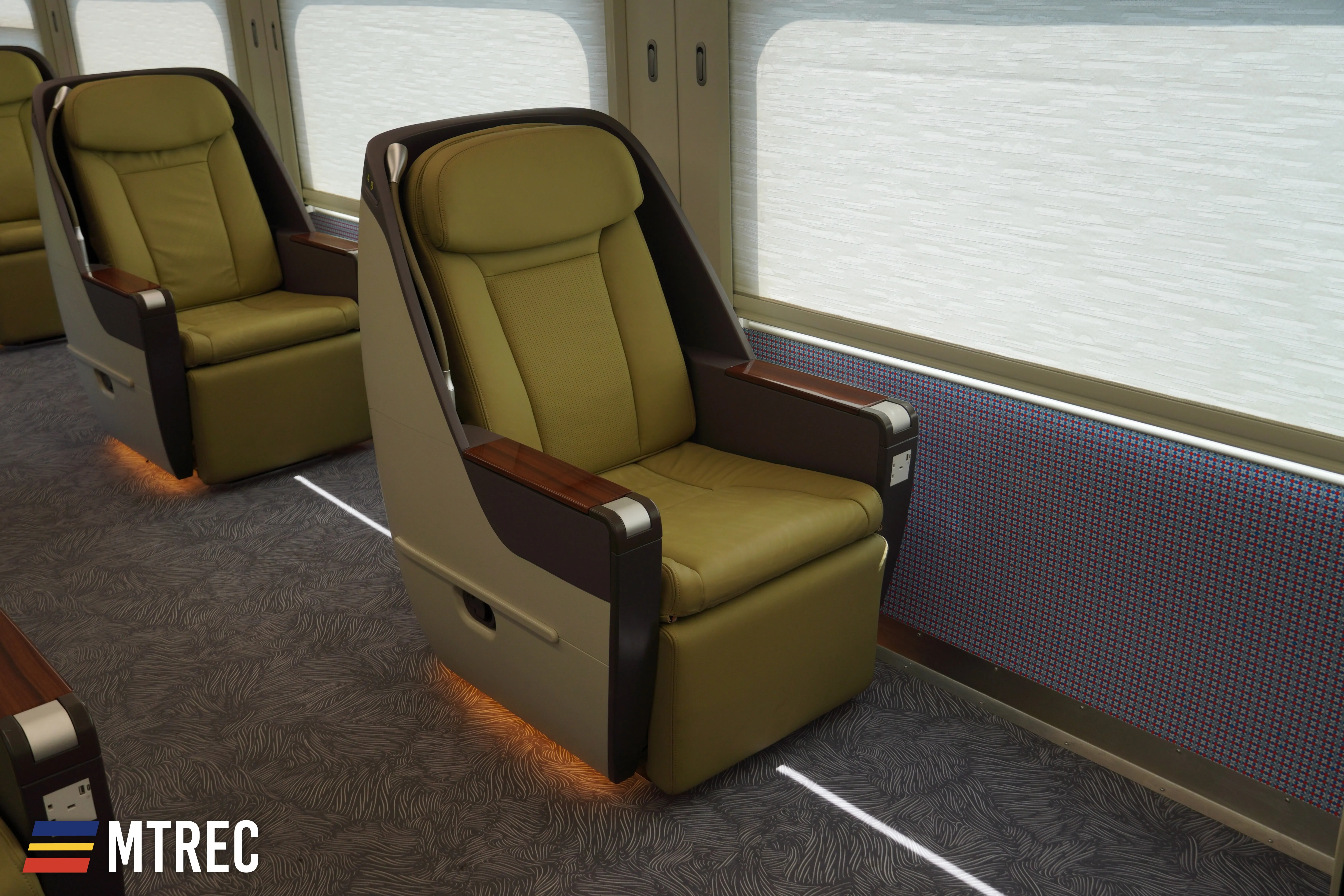

Executive Seat
Seats are wide and well-cushioned to provide a more comfortable and spacious travel experience for long-distance journeys.

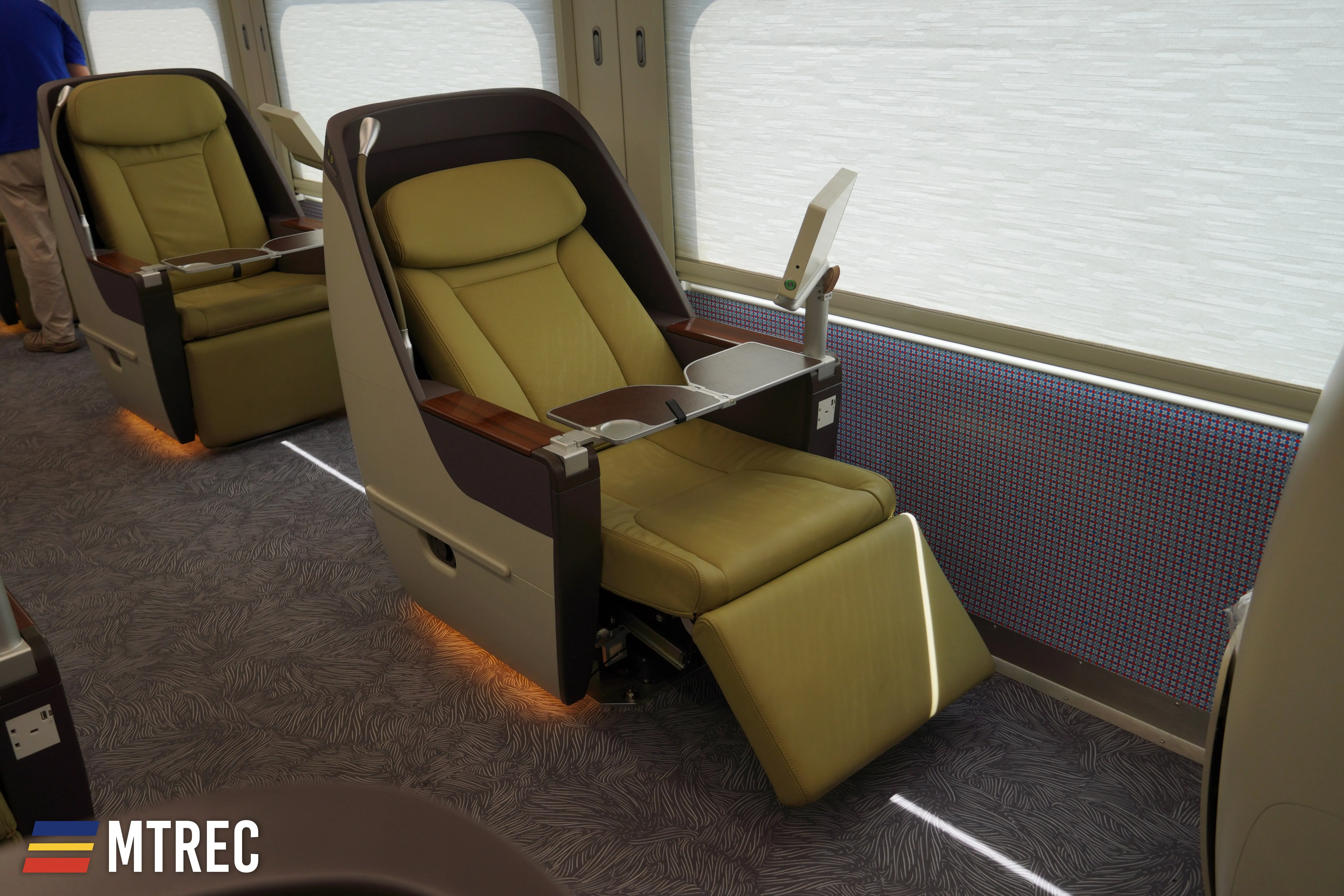

Reclined Position
Seats can be adjusted to preset or any reclined position to allow passengers to relax during the journey.

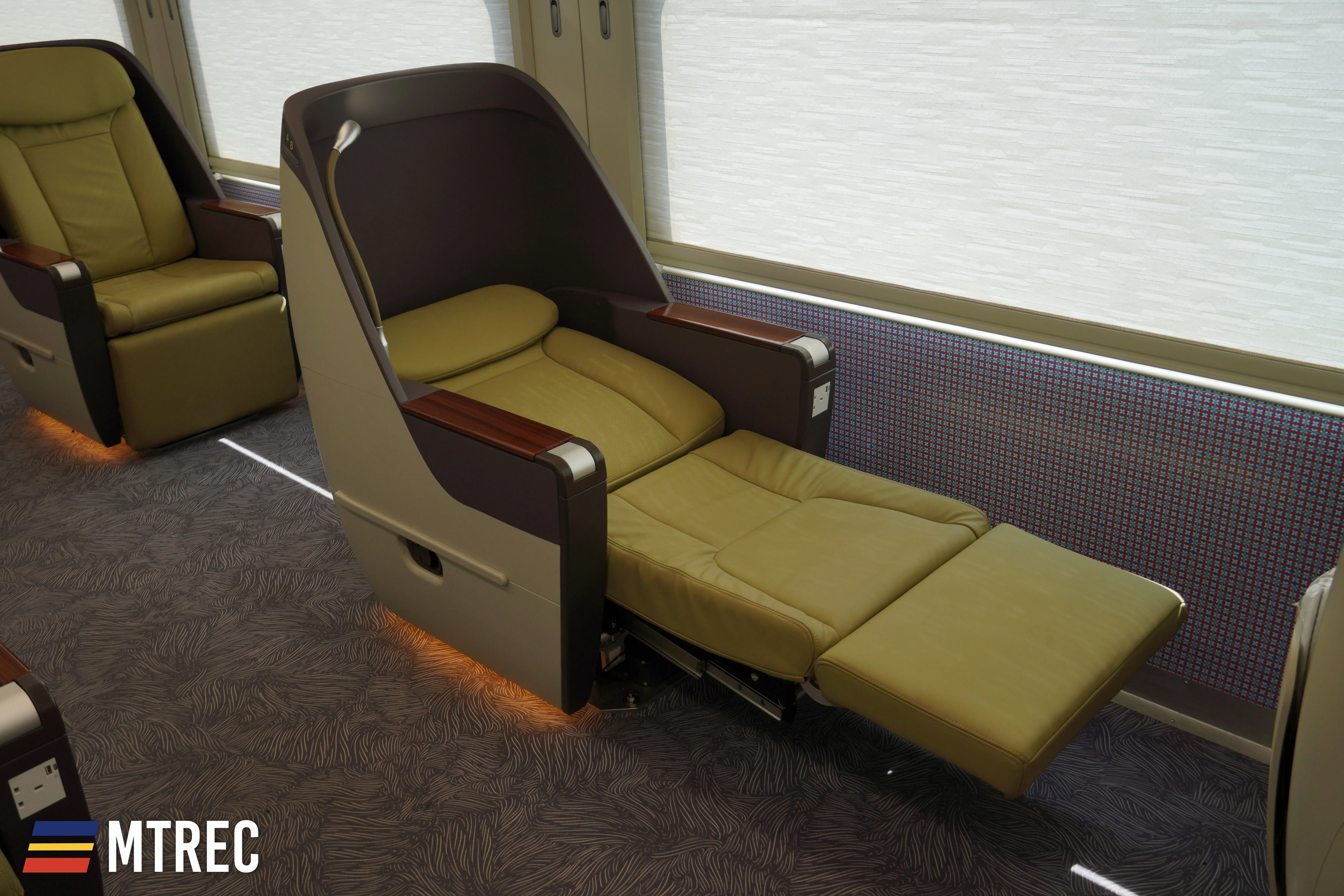

Lie Flat Position
Seats can be converted into a lie-flat position suitable for resting on longer trips.

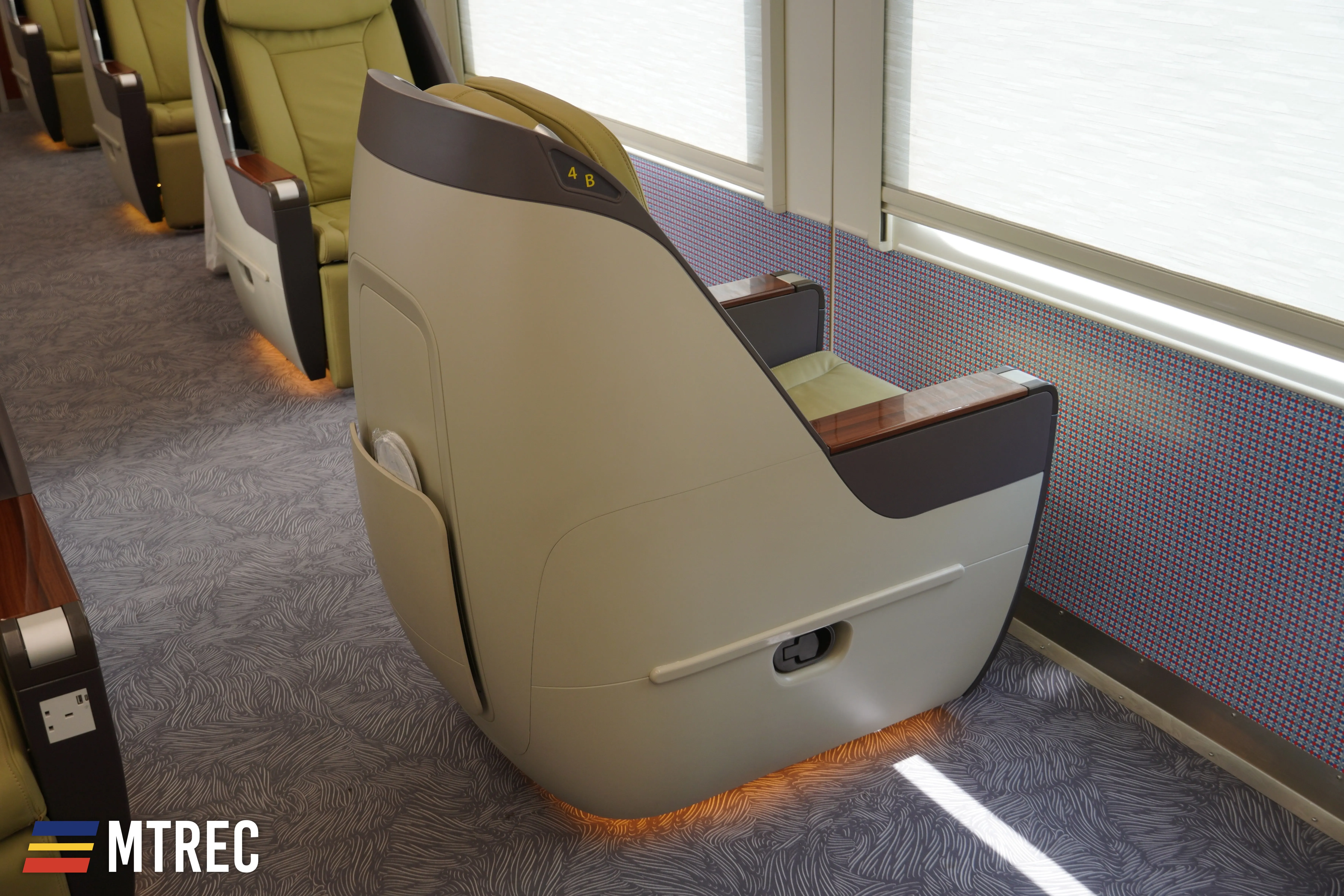

Rotating Seats
Seats can be rotated to face the direction of travel or arranged in a group setting for passengers travelling together.

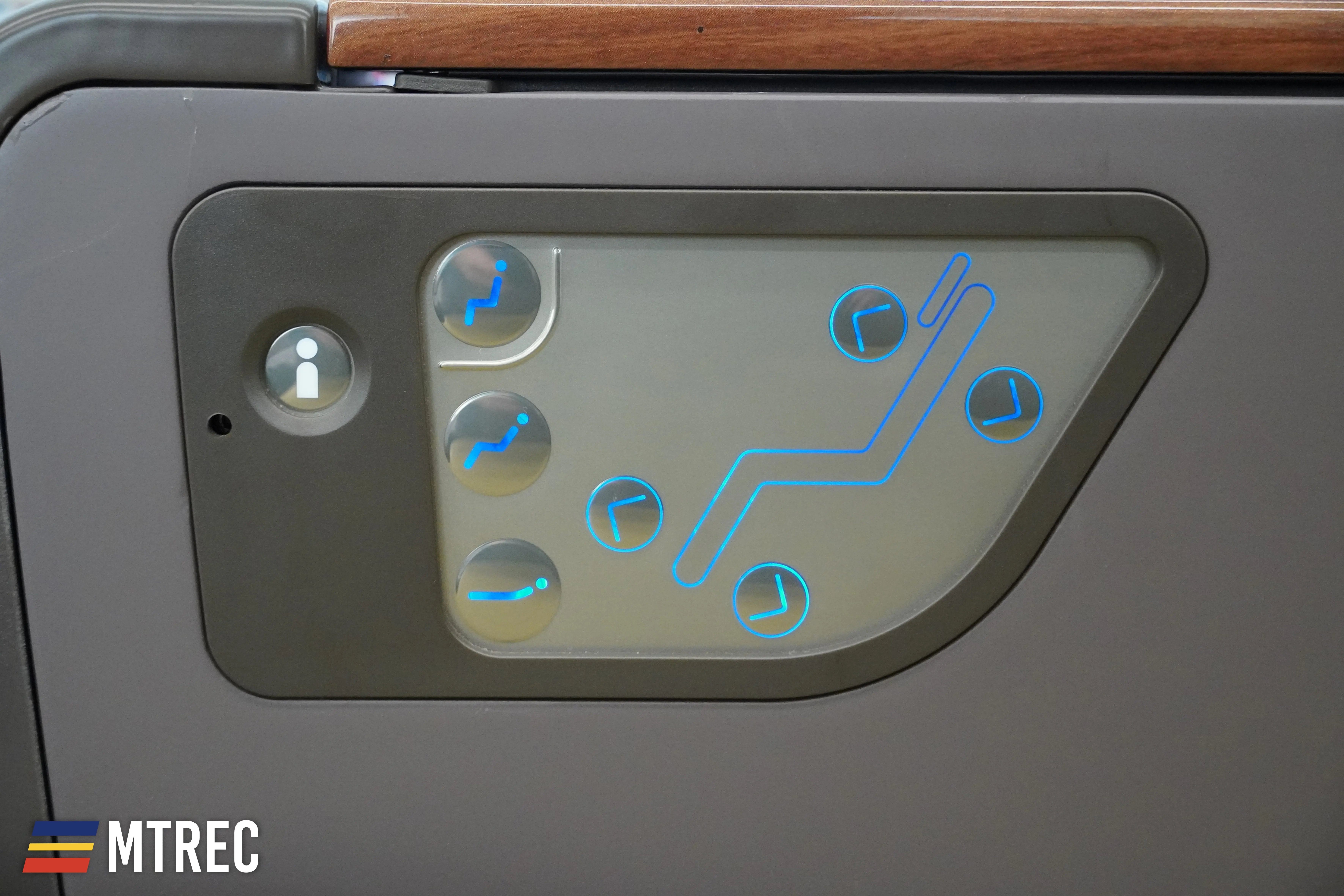

Seat Position Controller
An easy-to-use control panel that allows passengers to adjust seat positions based on their comfort as well as calling train attendant.

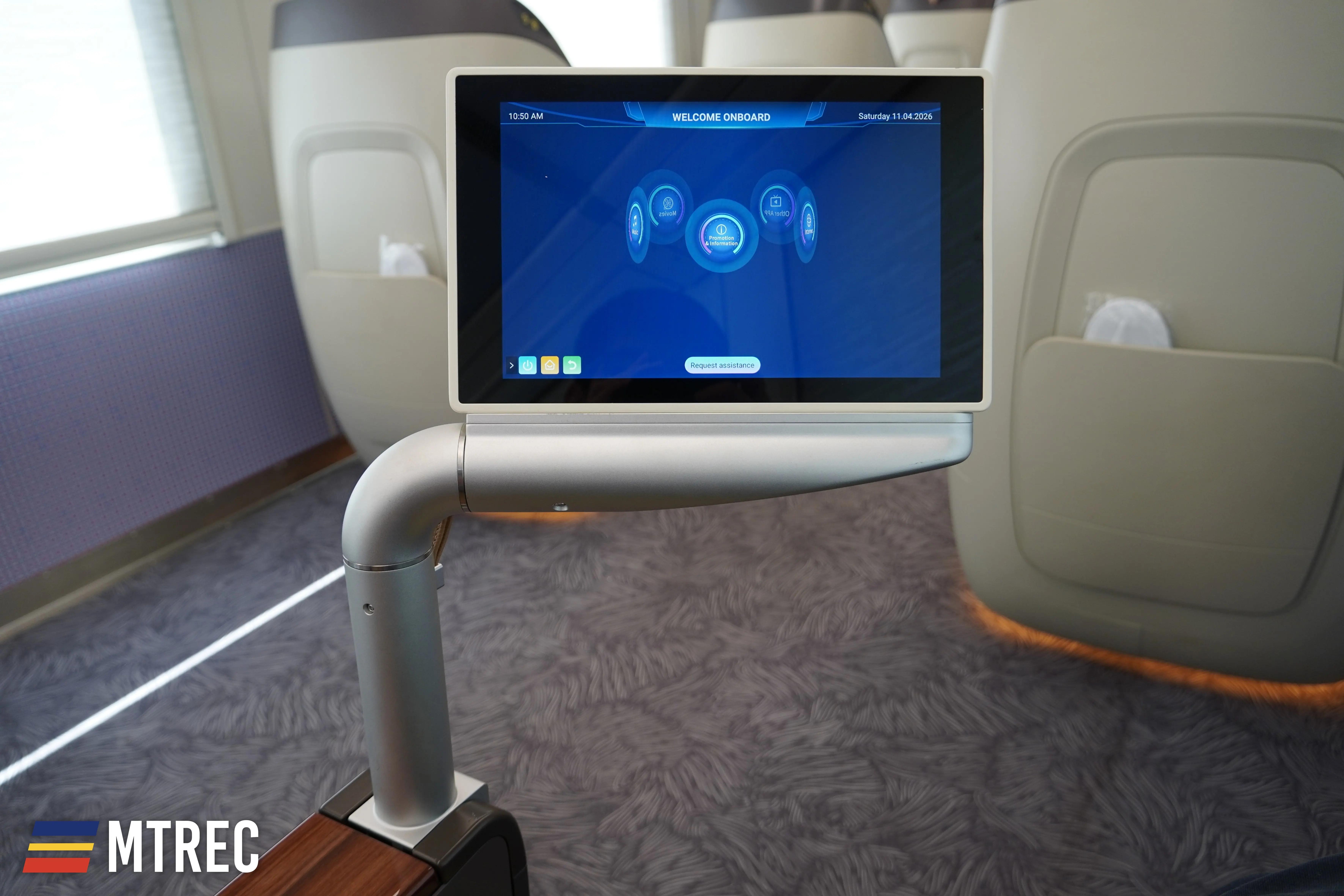

Passenger Infotainment System
Personal entertainment access available at each seat, providing onboard content and information during the journey.

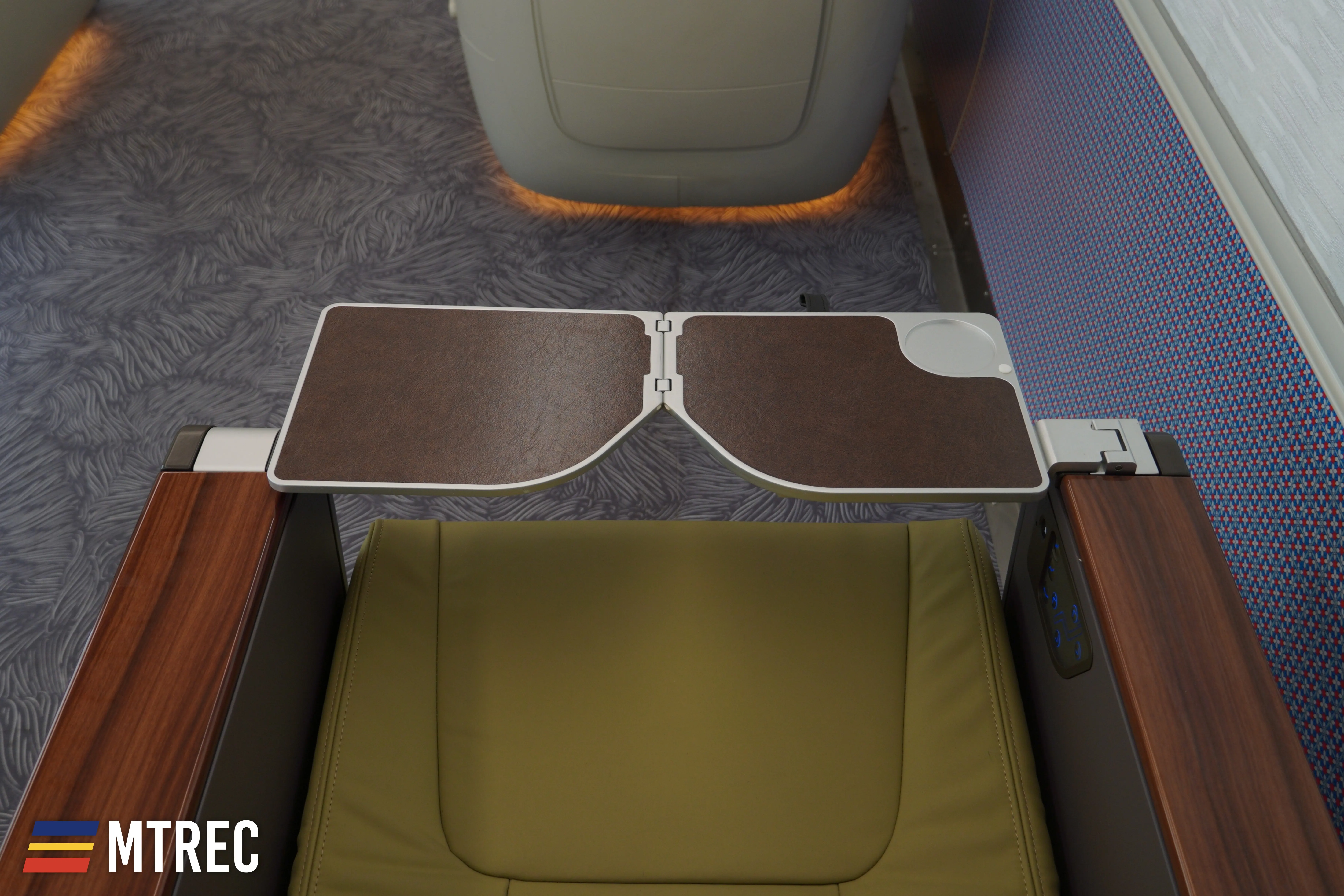

Foldable Table
A compact table that can be folded out when needed, suitable for meals, work, or personal use.

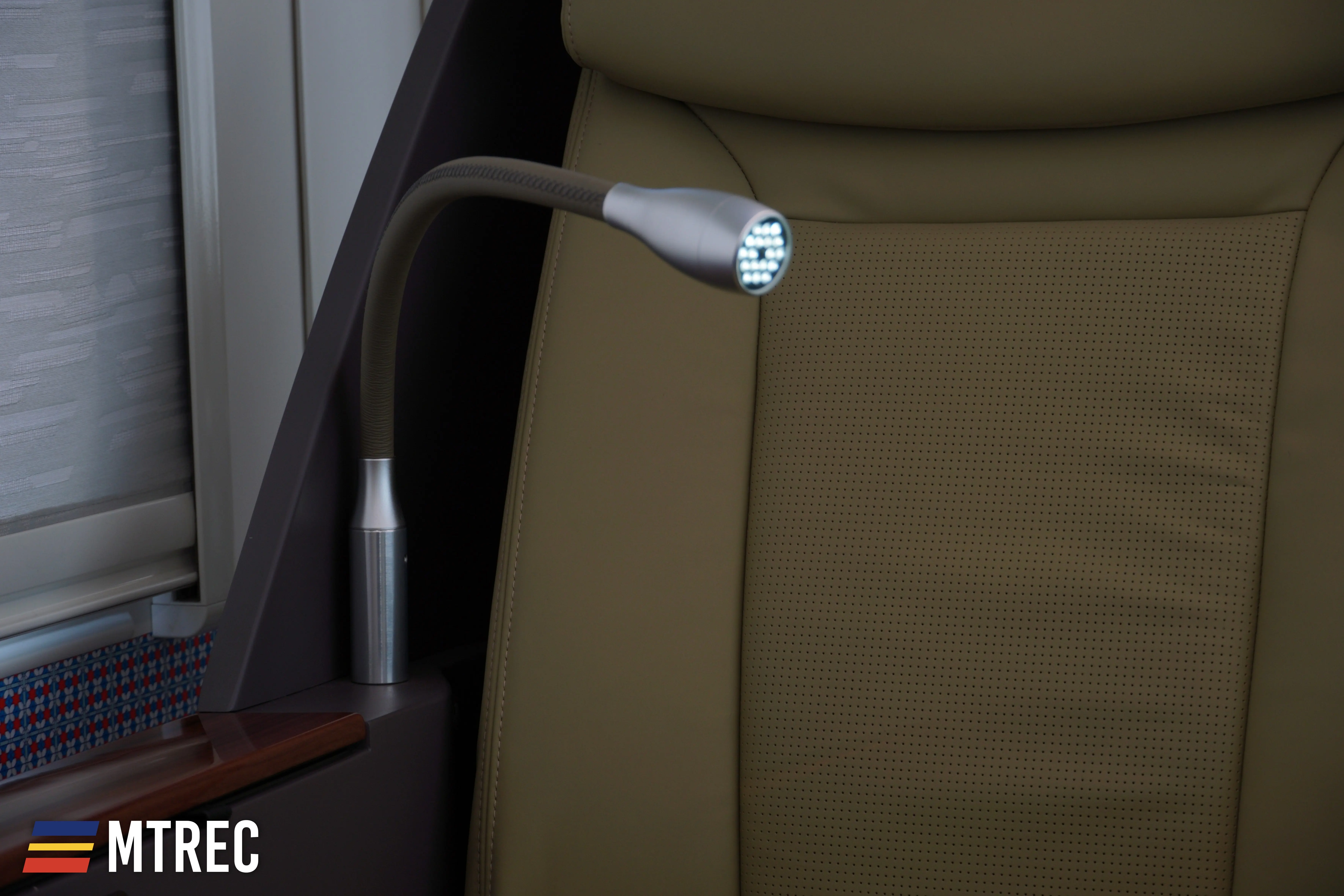

Reading Light
Individual reading lights with adjustable brightness are provided to allow passengers to read without disturbing others.

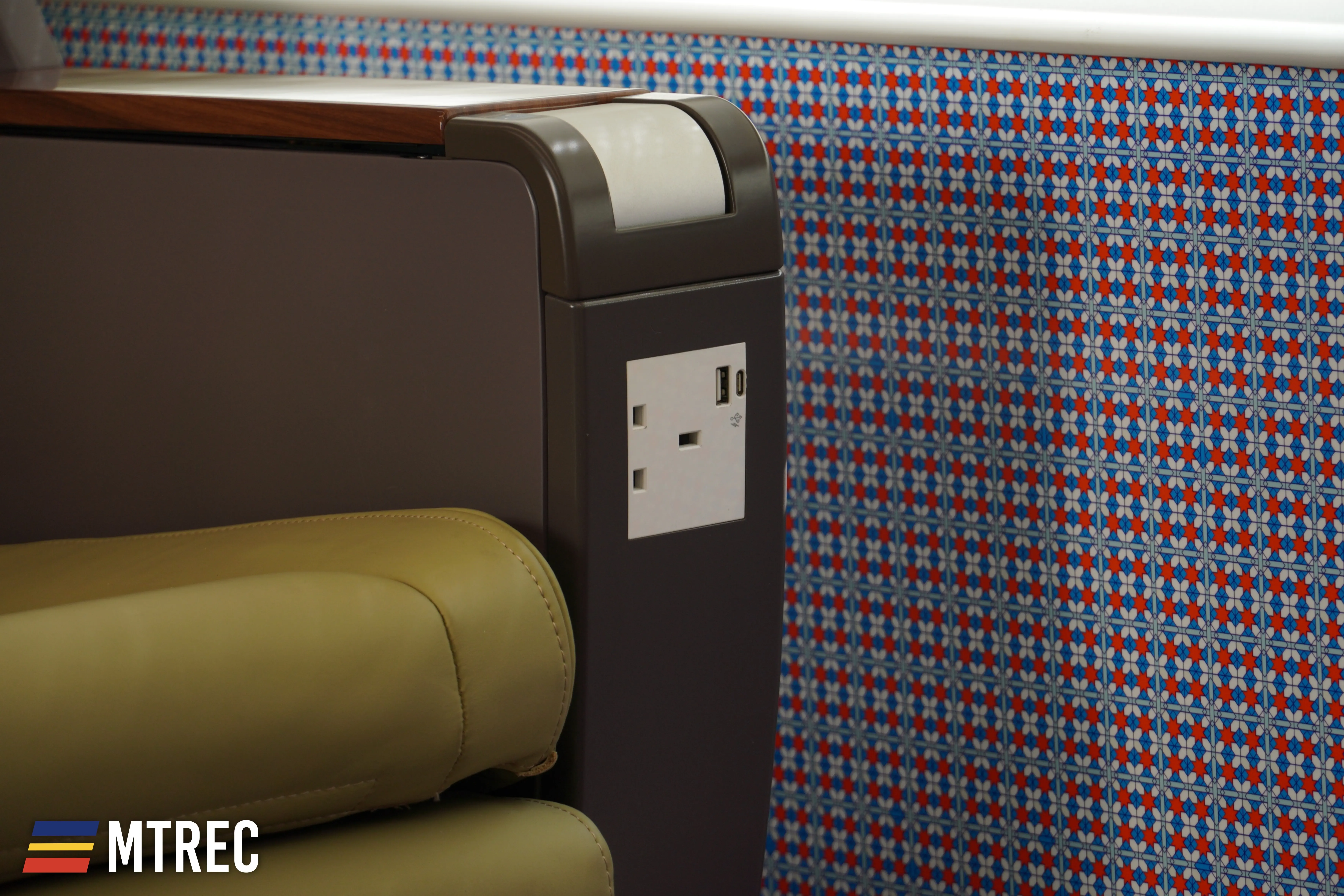

Power Outlets
Standard power outlets with USB-A and USB-C are available at each seat for charging electronic devices.

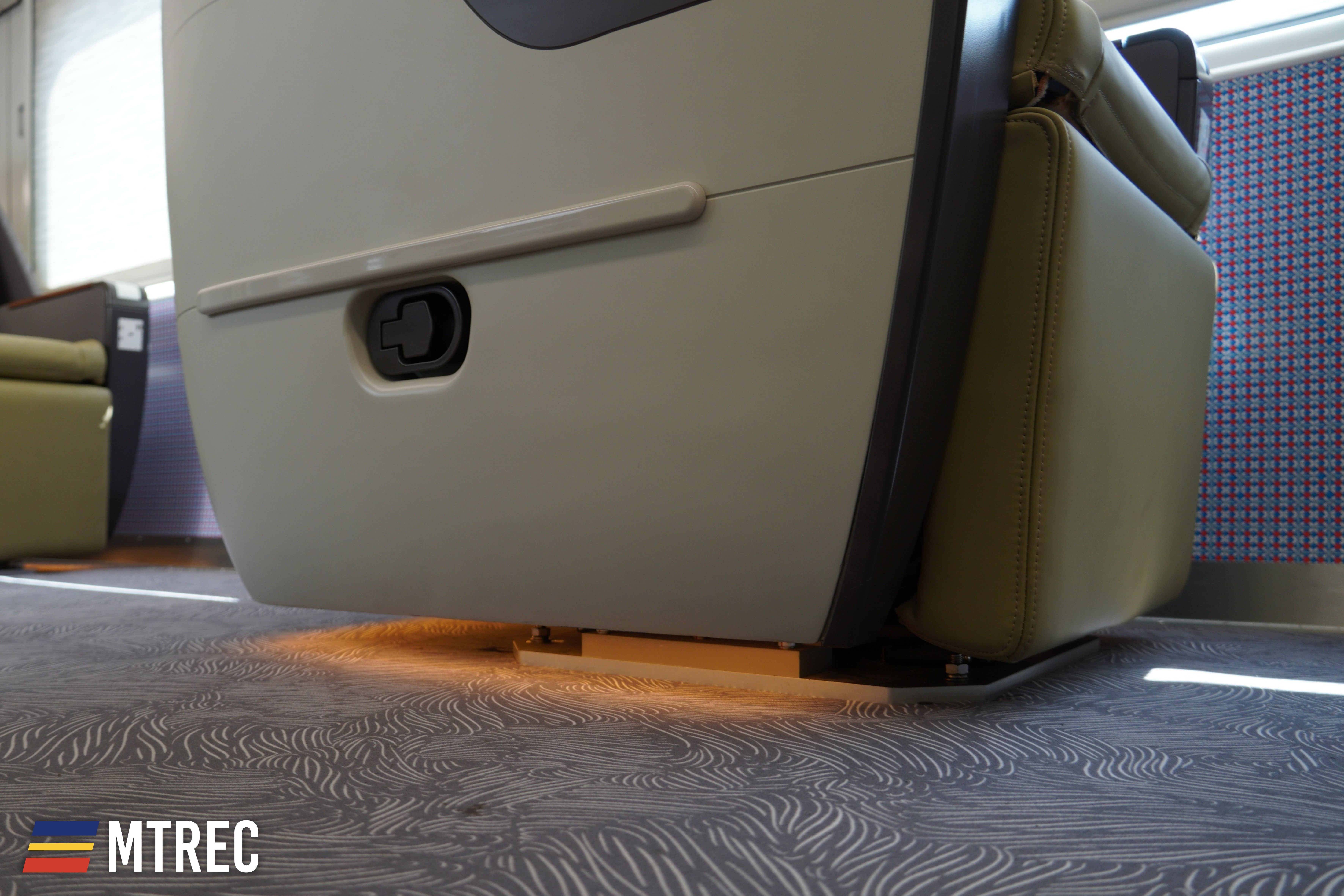

Under Seat Ambient Lightning
Soft lighting are installed beneath the seats to gently illuminate the floor and aisle to improve visibility and creating a calm atmosphere.
Onboard Facilities

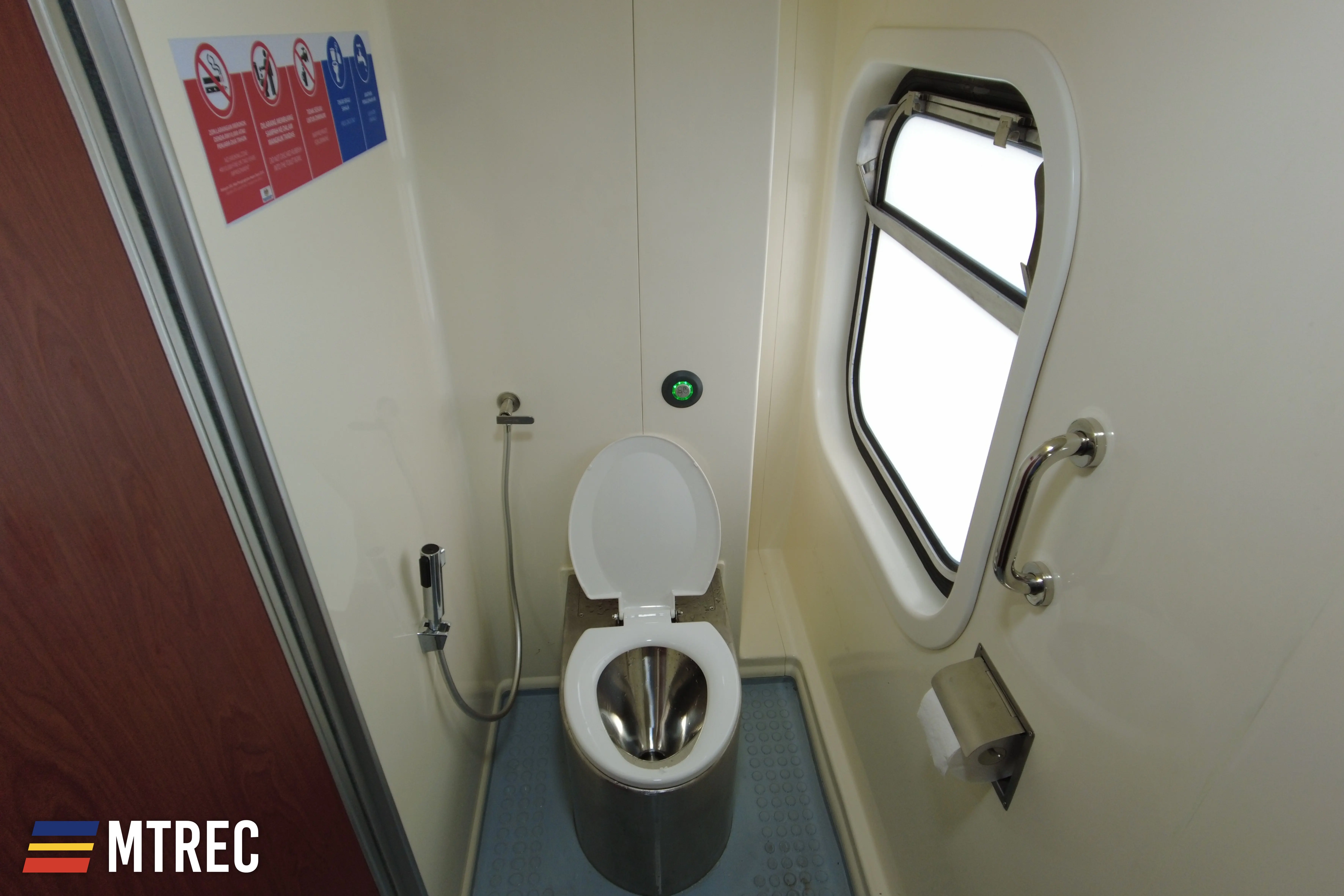

Toilet
A dedicated onboard toilet is available for passenger convenience throughout the journey.

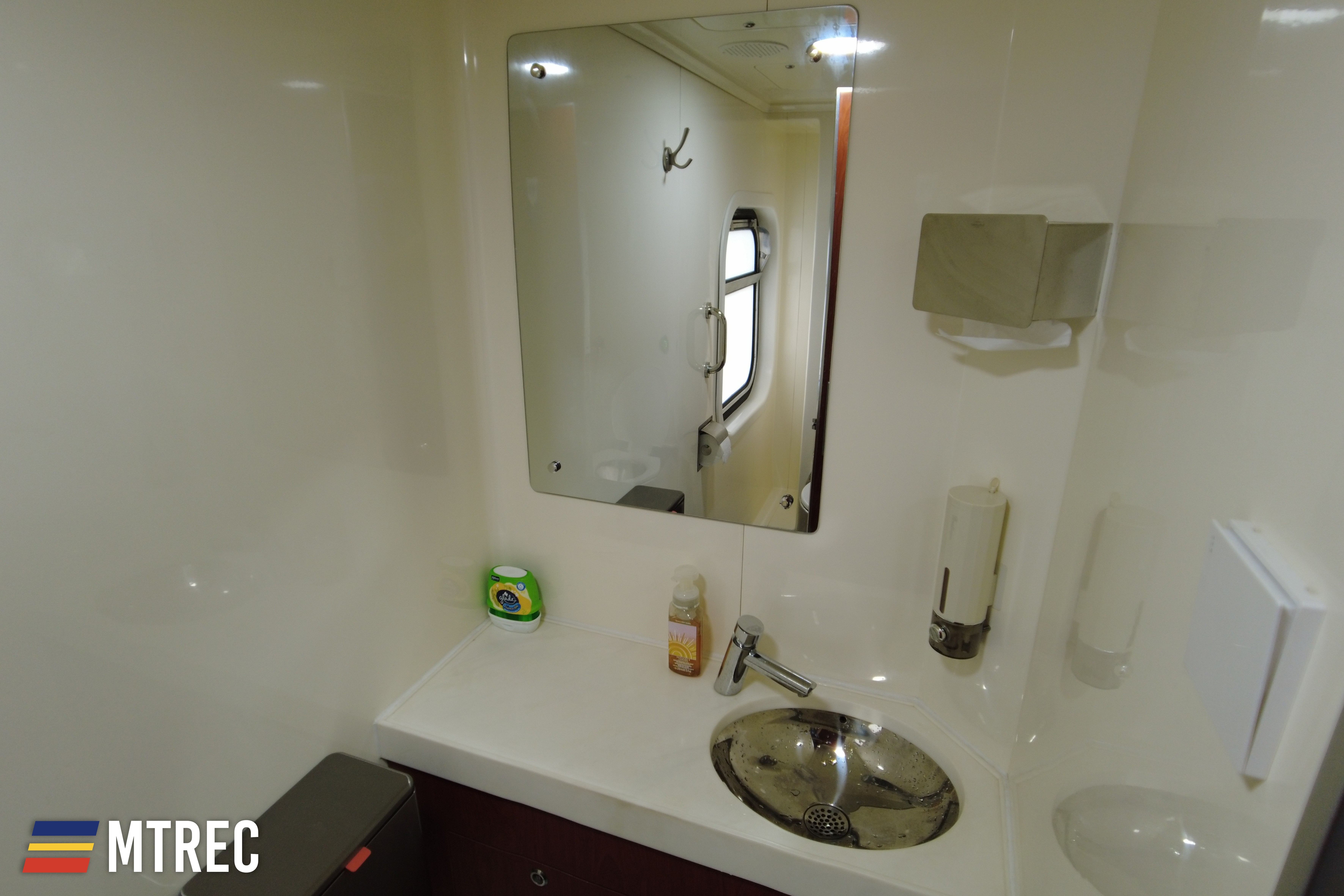

Wash Area
The wash area inside the toilet includes a sink, mirror, and trash bin, offering basic amenities for hand washing and personal use.

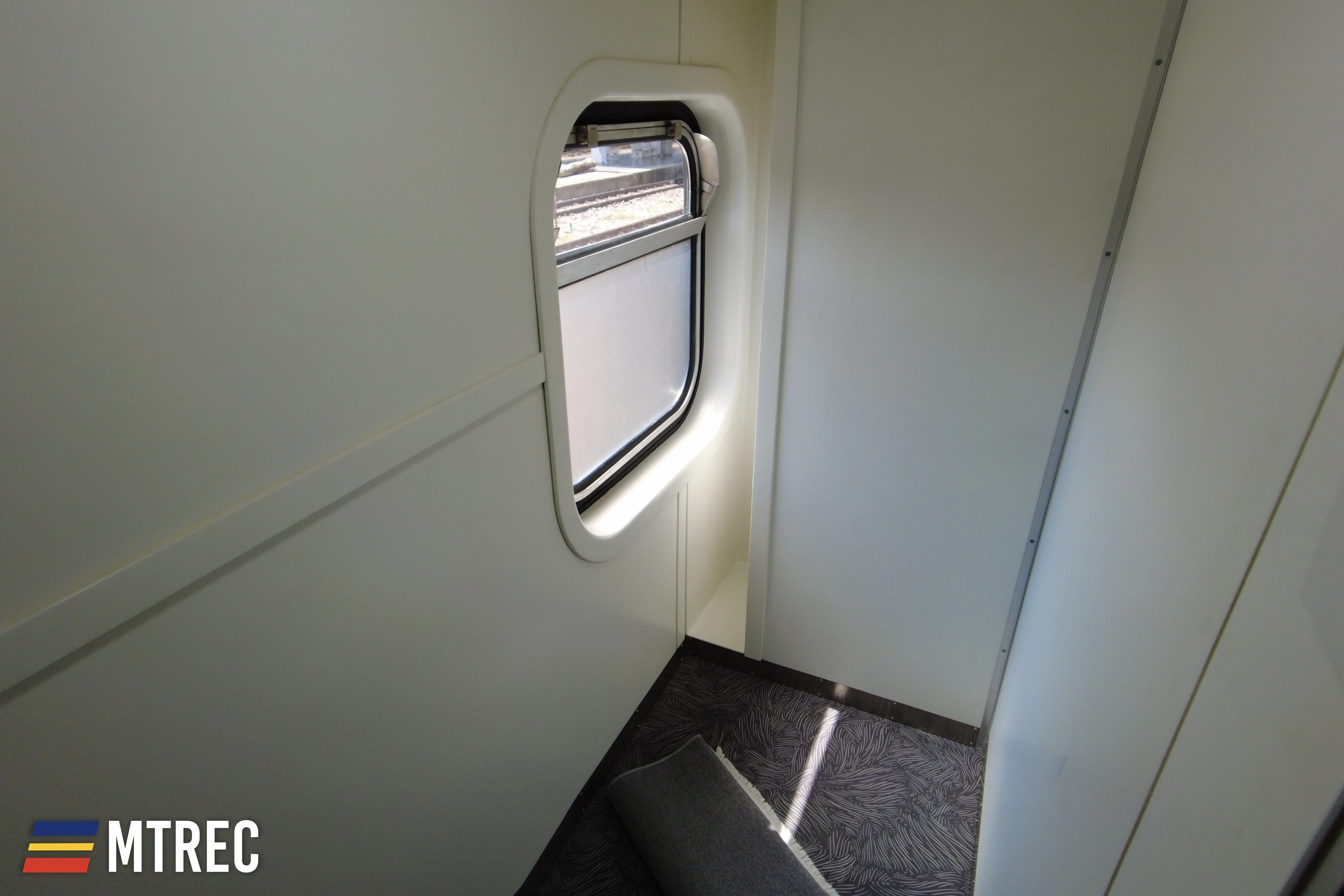

Surau
A small prayer room is provided onboard to accommodate passengers who wish to perform prayers.

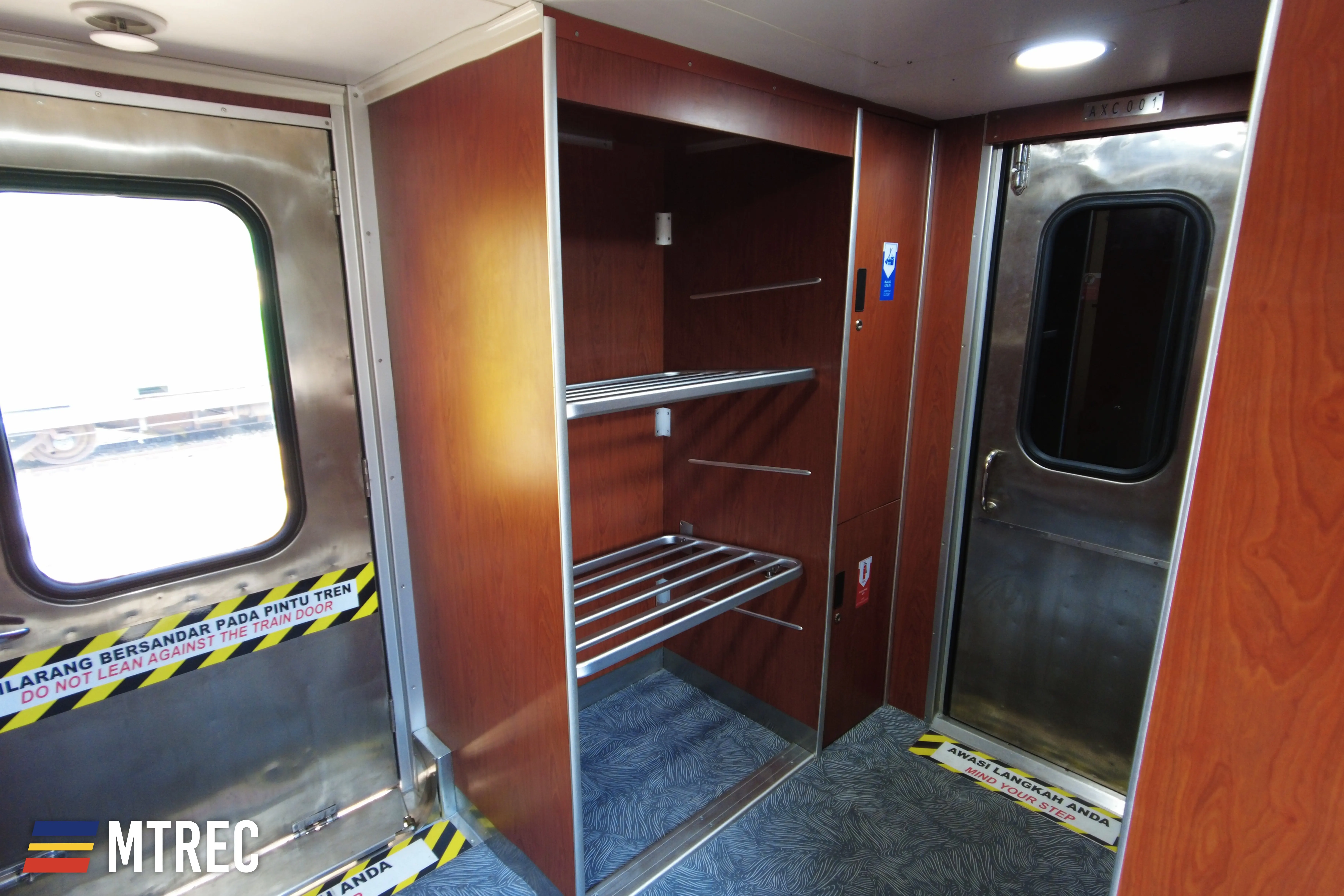

Luggage Rack
Designated storage areas are provided for larger or oversized luggage items within the coach.

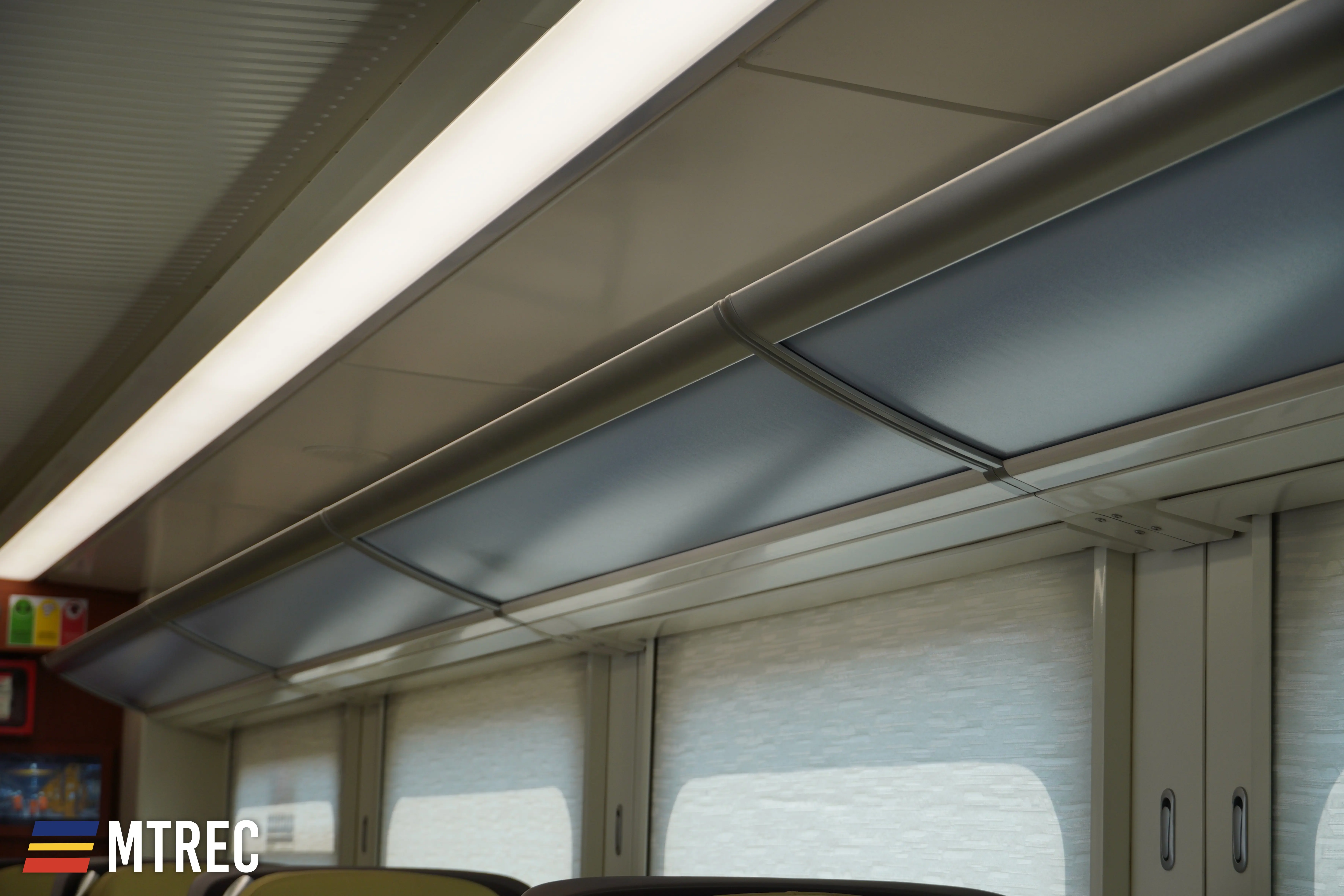

Overhead Luggage Rack
Storage space above the seats are also available for smaller bags and personal belongings.

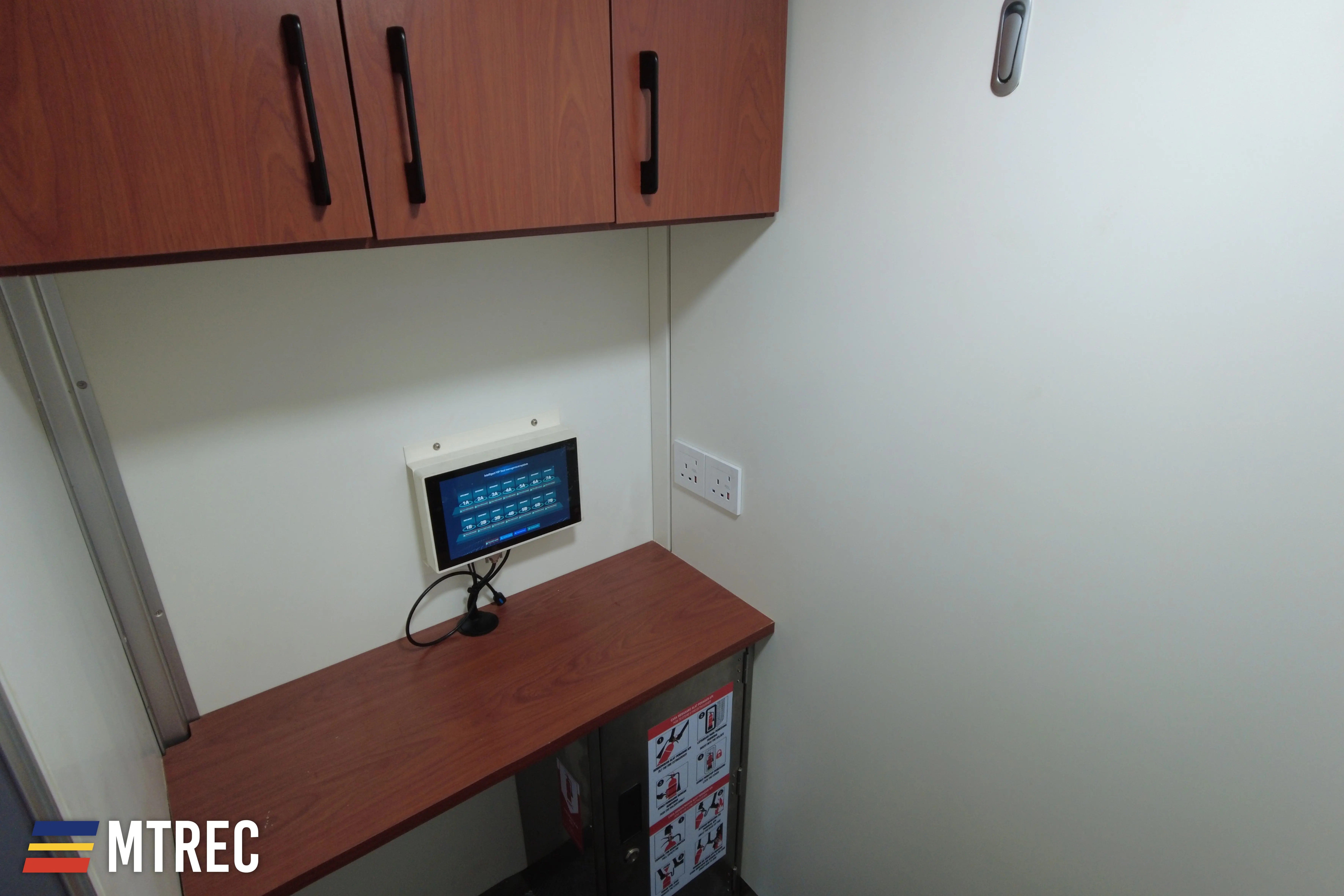

Conductor Room
A dedicated space for onboard staff to manage operations and assist passengers during the journey.

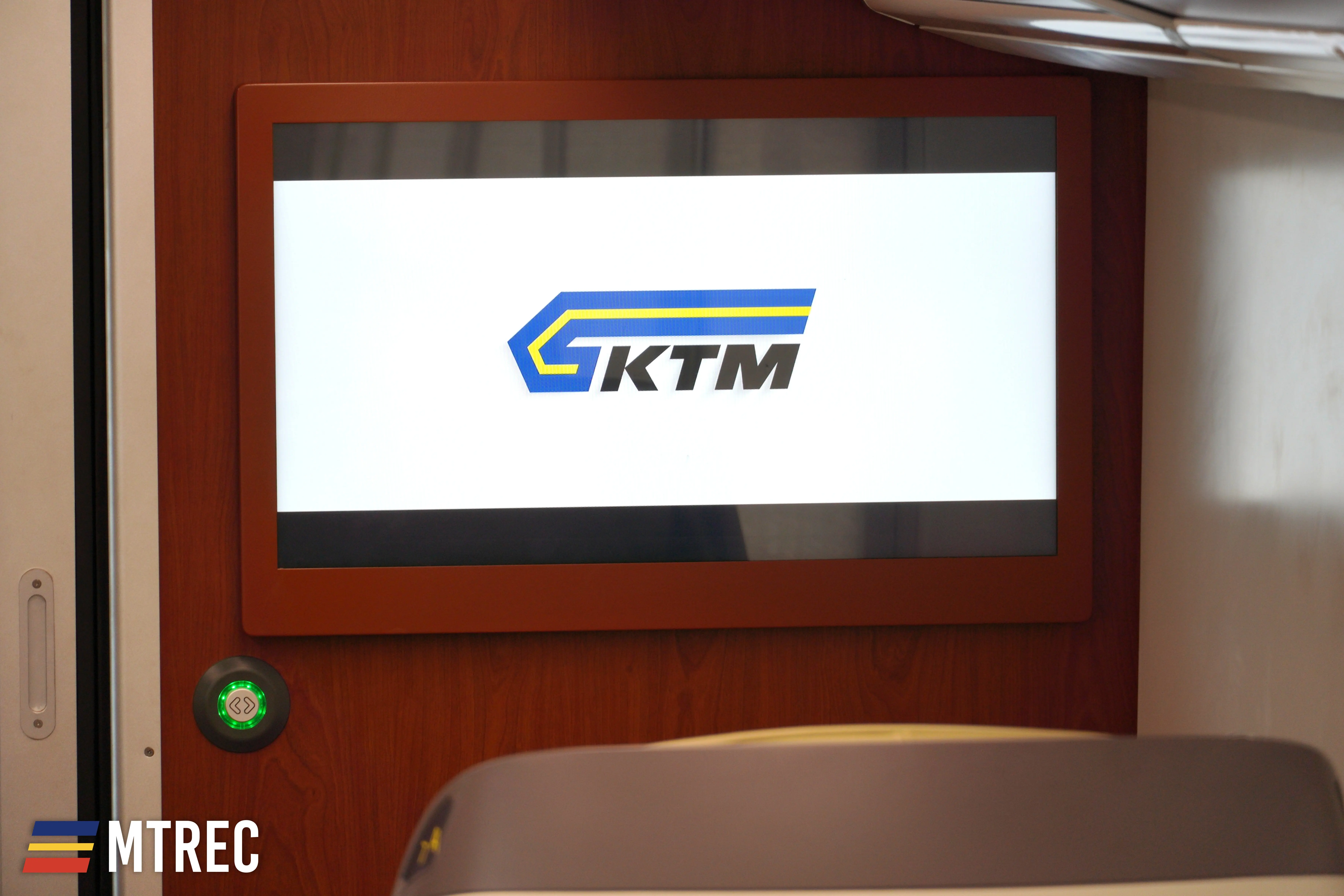

LCD Information Display
LCD screens are installed within the coach to provide real-time travel information and advertisements during the journey.

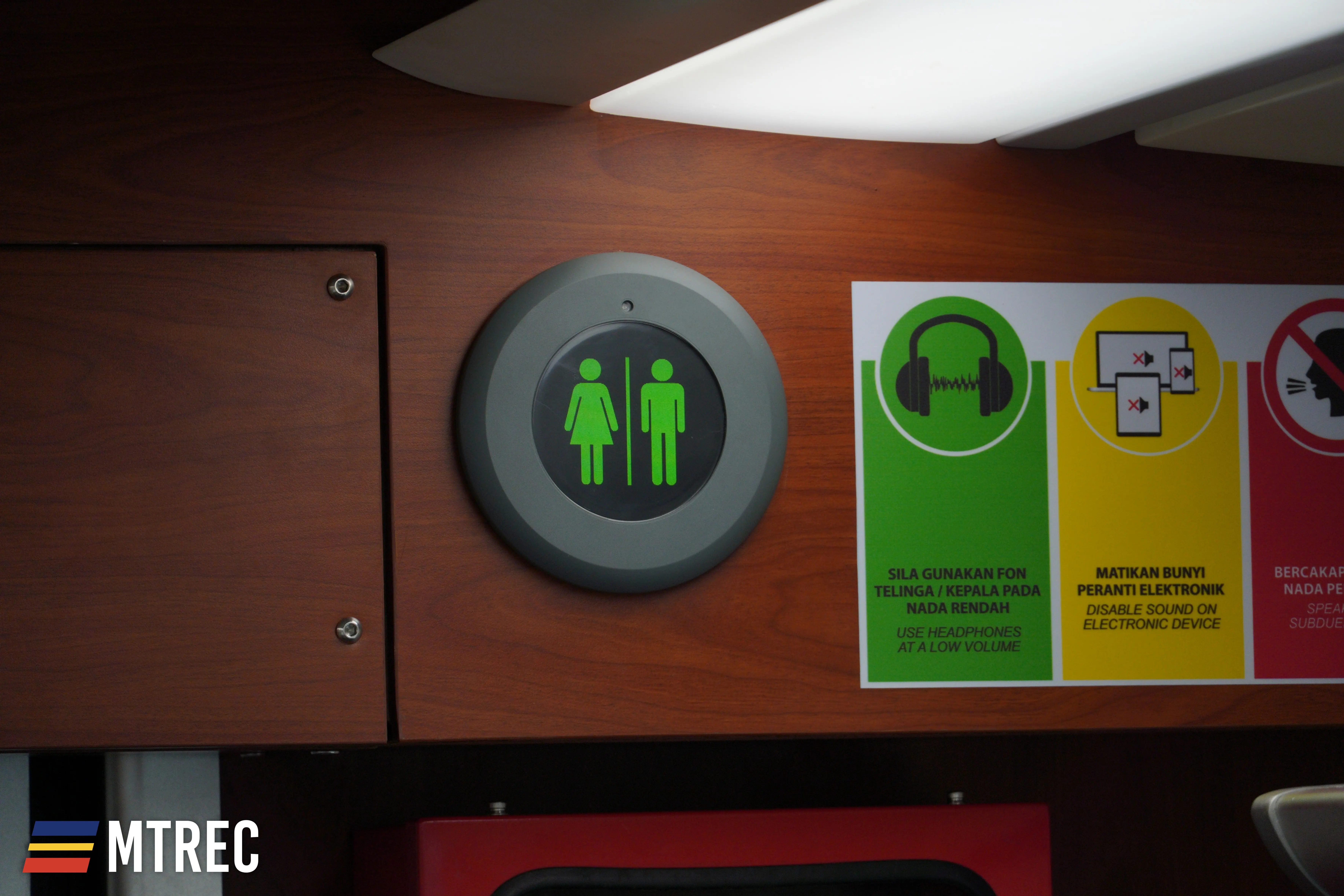

Toilet Occupancy Indicator
A simple colour indicator to show the occupancy status of the toilet located inside the coach as well as outside the toilet.

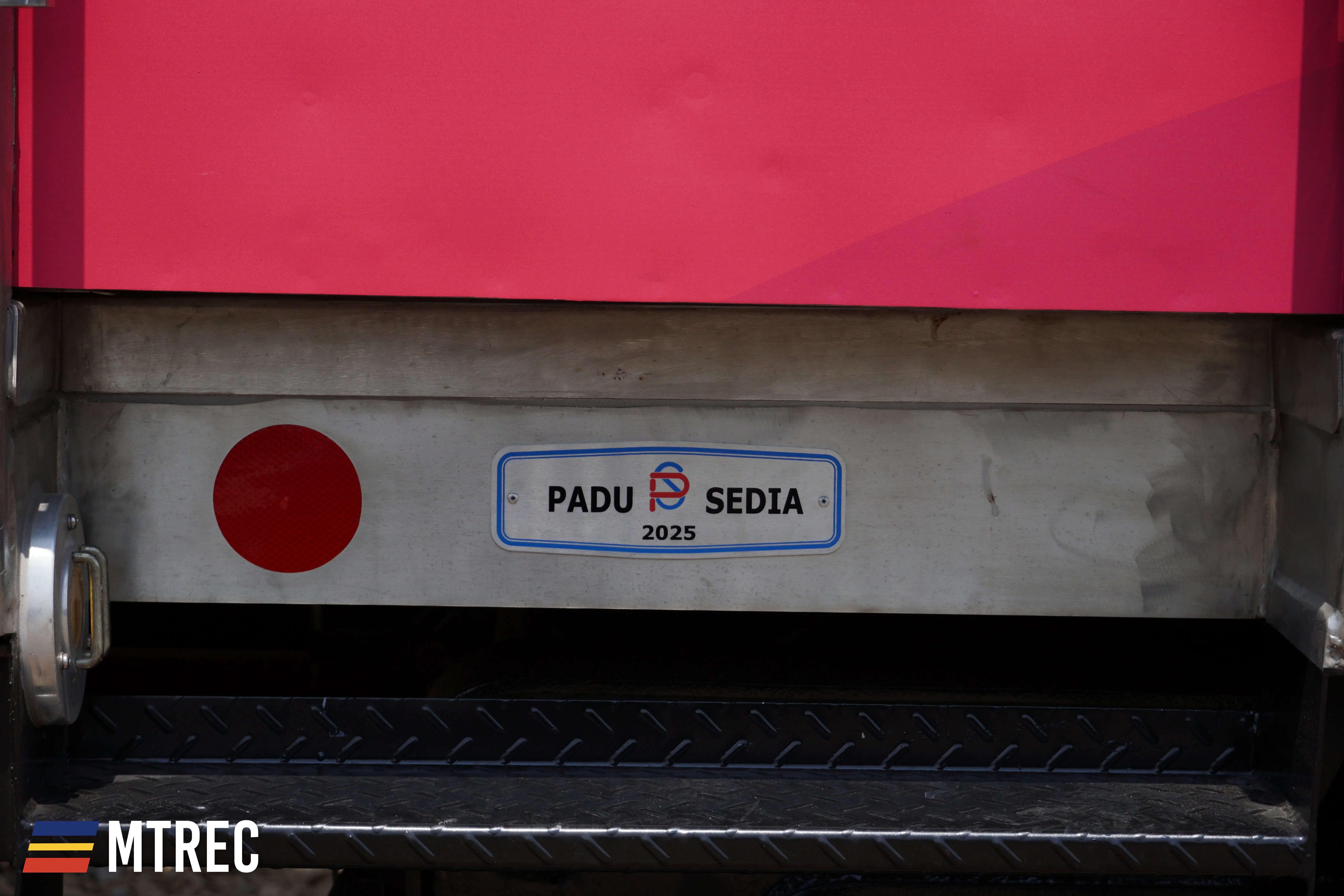

Manufacturer Plate
The manufacturer plate placed at the entrance of the coach shows the yeara of manufacture and manufacturer information.
Technical Specs
| Manufacturer | Hyundai Precision & Engineering Co. Ltd | Year Built | 1992 |
| Refurbished by | Padu Sedia Sdn Bhd | Year Refurbished | 2025 |
| Number Built | 2 coaches | Train Number | AXC001 (ASC2146) - AXC002 (ASC2162) |
| Car Body Material | Stainless Steel | Length | 22.846m |
| Power Supply | Power Generating Car (PGC) | Width | N/A |
| Track Gauge | Meter Gauge (1,000mm) | Height | N/A |
| Maximum Speed | 100 km/h (Design) | Doors | 4 per coach |
| 80km/h (Operation) | Number of Seats | 14 individual Capsule Seats |
